timertt::timer_wheel_thread_template< Timer_Action, Error_Logger, Actor_Exception_Handler > Class Template Reference

A timer wheel thread template. More...

#include <all.hpp>

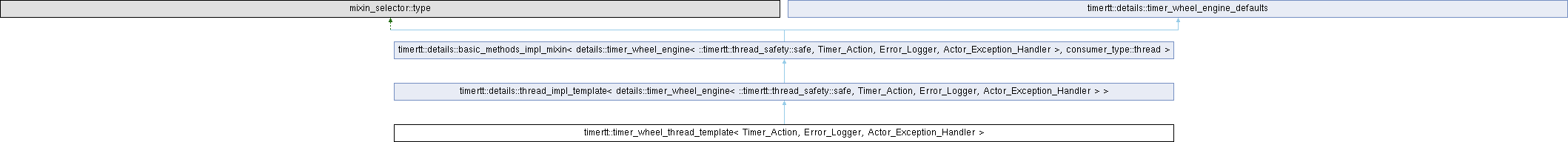

Inheritance diagram for timertt::timer_wheel_thread_template< Timer_Action, Error_Logger, Actor_Exception_Handler >:

Public Member Functions
	timer_wheel_thread_template ()
	Default constructor.
	timer_wheel_thread_template (unsigned int wheel_size, monotonic_clock::duration granularity)
	Constructor with wheel size and granularity parameters.
	timer_wheel_thread_template (unsigned int wheel_size, monotonic_clock::duration granularity, Error_Logger error_logger, Actor_Exception_Handler exception_handler)
	Constructor with all parameters.
Public Member Functions inherited from timertt::details::thread_impl_template< details::timer_wheel_engine< ::timertt::thread_safety::safe, Timer_Action, Error_Logger, Actor_Exception_Handler > >
	thread_impl_template (Args &&... args)
	Constructor with all parameters.
	~thread_impl_template ()
	Destructor.
void	start ()
	Start timer thread.
void	shutdown ()
	Initiate shutdown for the timer thread without waiting for completion.
void	join ()
	Wait for completion of timer thread.
void	shutdown_and_join ()
	Initiate shutdown and wait for completion.
Public Member Functions inherited from timertt::details::basic_methods_impl_mixin< details::timer_wheel_engine< ::timertt::thread_safety::safe, Timer_Action, Error_Logger, Actor_Exception_Handler >, consumer_type::thread >
	basic_methods_impl_mixin (Args &&... args)
	Constructor with all parameters.
timer_holder	allocate ()
	Allocate of new timer object.
void	activate (timer_holder timer, Duration_1 pause, timer_action action)
	Activate timer and schedule it for execution.
void	activate (scoped_timer_object &timer, Duration_1 pause, timer_action action)
	Activate a scoped timer and schedule it for execution.
void	activate (Duration_1 pause, timer_action action)
	Activate timer and schedule it for execution.
void	activate (timer_holder timer, Duration_1 pause, Duration_2 period, timer_action action)
	Activate timer and schedule it for execution.
void	activate (scoped_timer_object &timer, Duration_1 pause, Duration_2 period, timer_action action)
	Activate a scoped timer and schedule it for execution.
void	activate (Duration_1 pause, Duration_2 period, timer_action action)
	Activate timer and schedule it for execution.
void	reschedule (timer_holder timer, Duration_1 pause, timer_action action)
	Perform an attempt to reschedule a timer.
void	reschedule (timer_holder timer, Duration_1 pause, Duration_2 period, timer_action action)
	Perform an attempt to reschedule a timer.
void	deactivate (timer_holder timer)
	Deactivate timer and remove it from the list.
void	deactivate (scoped_timer_object &timer)
	Deactivate timer and remove it from the list.
timer_quantities	get_timer_quantities ()
	Count of timers of various types.
bool	empty ()
	Check for emptiness.

Private Types
using	base_type

Additional Inherited Members
Public Types inherited from timertt::details::basic_methods_impl_mixin< details::timer_wheel_engine< ::timertt::thread_safety::safe, Timer_Action, Error_Logger, Actor_Exception_Handler >, consumer_type::thread >
using	thread_safety
	A typedef for thread safety type from Engine.
using	timer_action
	An alias for timer_action type.
using	scoped_timer_object
	An alias for scoped timer objects.
using	timer_holder
	Shorthand for timer objects' smart pointer.
Static Public Member Functions inherited from timertt::details::timer_wheel_engine_defaults
static unsigned int	default_wheel_size ()
	Default wheel size.
static monotonic_clock::duration	default_granularity ()
	Default tick duration.
Protected Member Functions inherited from timertt::details::thread_impl_template< details::timer_wheel_engine< ::timertt::thread_safety::safe, Timer_Action, Error_Logger, Actor_Exception_Handler > >
void	body ()
	Thread body.
void	sleep_for_next_event (typename base_type::lock_guard &lock)
	Waiting for next event to process.
Protected Attributes inherited from timertt::details::thread_impl_template< details::timer_wheel_engine< ::timertt::thread_safety::safe, Timer_Action, Error_Logger, Actor_Exception_Handler > >
bool	m_shutdown
	Shutdown flag.
Protected Attributes inherited from timertt::details::basic_methods_impl_mixin< details::timer_wheel_engine< ::timertt::thread_safety::safe, Timer_Action, Error_Logger, Actor_Exception_Handler >, consumer_type::thread >
details::timer_wheel_engine< ::timertt::thread_safety::safe, Timer_Action, Error_Logger, Actor_Exception_Handler >	m_engine
	Actual timer engine instance.

Detailed Description

template<typename Timer_Action, typename Error_Logger, typename Actor_Exception_Handler>
class timertt::timer_wheel_thread_template< Timer_Action, Error_Logger, Actor_Exception_Handler >

A timer wheel thread template.

Please see description of details::timer_wheel_engine for the details of the timer wheel mechanism.

Template Parameters

Timer_Action	type of functor to perform an user-defined action when timer expires. This must be Moveable and MoveConstructible type.
Error_Logger	type of logger for errors detected during timer thread execution. Interface for error logger is defined by default_error_logger class.
Actor_Exception_Handler	type of handler for dealing with exceptions thrown from timer actors. Interface for exception handler is defined by default_actor_exception_handler.

Definition at line 3679 of file 3rd_party/timertt/all.hpp.

Member Typedef Documentation

base_type

template<typename Timer_Action , typename Error_Logger , typename Actor_Exception_Handler >

using timertt::timer_wheel_thread_template< Timer_Action, Error_Logger, Actor_Exception_Handler >::base_type

private

Initial value:


      details::thread_impl_template<
          details::timer_wheel_engine<
              ::timertt::thread_safety::safe,
              Timer_Action,
              Error_Logger,
              Actor_Exception_Handler > >

Definition at line 3688 of file 3rd_party/timertt/all.hpp.

Constructor & Destructor Documentation

timer_wheel_thread_template() [1/3]

template<typename Timer_Action , typename Error_Logger , typename Actor_Exception_Handler >

timertt::timer_wheel_thread_template< Timer_Action, Error_Logger, Actor_Exception_Handler >::timer_wheel_thread_template ( )

inline

Default constructor.

Definition at line 3698 of file 3rd_party/timertt/all.hpp.

timer_wheel_thread_template() [2/3]

template<typename Timer_Action , typename Error_Logger , typename Actor_Exception_Handler >

timertt::timer_wheel_thread_template< Timer_Action, Error_Logger, Actor_Exception_Handler >::timer_wheel_thread_template ( unsigned int wheel_size, monotonic_clock::duration granularity )

inline

Constructor with wheel size and granularity parameters.

Parameters

wheel_size	Size of the wheel.
granularity	Size of time step for the timer_wheel.

Definition at line 3707 of file 3rd_party/timertt/all.hpp.

timer_wheel_thread_template() [3/3]

template<typename Timer_Action , typename Error_Logger , typename Actor_Exception_Handler >

timertt::timer_wheel_thread_template< Timer_Action, Error_Logger, Actor_Exception_Handler >::timer_wheel_thread_template ( unsigned int wheel_size, monotonic_clock::duration granularity, Error_Logger error_logger, Actor_Exception_Handler exception_handler )

inline

Constructor with all parameters.

Parameters

wheel_size	Size of the wheel.
granularity	Size of time step for the timer_wheel.
error_logger	An error logger for timer thread.
exception_handler	An actor exception handler for timer thread.

Definition at line 3720 of file 3rd_party/timertt/all.hpp.

---

The documentation for this class was generated from the following file:

• 3rd_party/timertt/all.hpp
